Document templates - KayanOS Documentation

Document templates turn approved record data into a controlled DOCX or PDF document. Use them for documents whose wording and layout must be consistent—an acknowledgement, appointment notice, service certificate, inspection instruction, or decision letter—while keeping the record that justified the document available for review. A template is a managed DOCX file with metadata, versions, validation results, a default execution mode, and an optional filename expression. It is not a substitute for a human decision, a document-retention policy, or review of the rendered output. This guide covers the template lifecycle and the operational choices around it. For the exact tag grammar, Word authoring rules, loops, images, links, QR codes, includes, and renderer limits, use Document-template tags and rendering.

When to use it

Use a managed template when the same approved document needs to be generated repeatedly from a record. Examples include a citizen-service acknowledgement, a property-inspection visit notice, an eligibility letter, a payment schedule, or a service-completion certificate. The template should read stored keys from a record; it should not be the only place where the organization remembers the decision or the document number. Choose another mechanism when the requirement has a different purpose:

Need	Better approach	Reason
Staff must decide whether a document may be issued	A controlled status, action, and accountable review fields	Rendering data does not grant approval.
A citizen must submit information	A form or public portal flow	A template produces an output; it does not collect a validated submission.
A unique reference must be issued	A Serial ID field	Use the stored serial in the template rather than constructing a number in Word.
A one-off personal note	A governed record note or approved correspondence process	A managed template is best when repeatability and version history matter.
An unreviewed data export	A report or export with its own access review	A document template should contain only the data that the intended audience may see.

Keep the use case narrow. A single “all purposes” document becomes hard to test, harder to approve, and risky when an action uses elevated access. Prefer one acknowledgement template and one certificate template, each tied to a clear record type and release decision.

Reuse editor text with personal writing templates

Writing templates are different from the managed document templates described in the rest of this guide. A writing template reuses rich-editor content inside a note, description, message, or another editor that enables the template control. It does not render a DOCX/PDF file, read an entity context, create an immutable version, or run with elevated lookups. Open the writing-template picker from the rich-editor toolbar, or use its slash-menu entry where available. Search for a built-in or saved template and select it to insert the content at the current editor position. To create a personal template, prepare the reusable content, open the picker, choose Save as template, and give it a unique, recognizable name. Saved templates can be renamed or deleted from the same picker. Personal writing templates are scoped to the current member inside the active organization. They are not automatically shared with colleagues, and switching organization context loads that member’s templates for the new organization. Built-in templates may also appear when the editor provides them, but they cannot be renamed or deleted like a personal template. Insertion creates editable content, not a governed final statement. Before saving or sending, review names, dates, recipients, references, language direction, and any wording that may have become outdated. Do not save credentials, personal data, or a live case-specific statement as a reusable template.

Configuration

Create, validate, and version the template

Open Document templates in Build, upload a .docx file, then enter a meaningful name and description. The service accepts DOCX templates, checks package safety, parses recognized tag text, and stores a validation summary and tag inventory with the uploaded version. A managed template points to one current version; uploading a new version makes it current. The service retains older versions, but the current Builder screen shows the current-version identifier and source download rather than a browsable previous-version list. Keep the approved source file and release record outside the screen so a wording change can be traced and reviewed. Upload validation rejects unsafe DOCX packages and several tag problems, including an empty tag, raw XML insertion, malformed if or each syntax, unbalanced blocks, and the recognized unsupported @html and @chart commands. It does not prove that a control tag occupies a whole Word paragraph or table row, and it does not reliably identify an arbitrary unknown @... command. It also cannot prove that a real record has every optional field, that a relationship has the expected shape, or that the final Word layout is acceptable. Always render a representative saved record after validation; that render is the required test for every if, each, else, and include placement. KayanOS document-template management for a public-service acknowledgement.

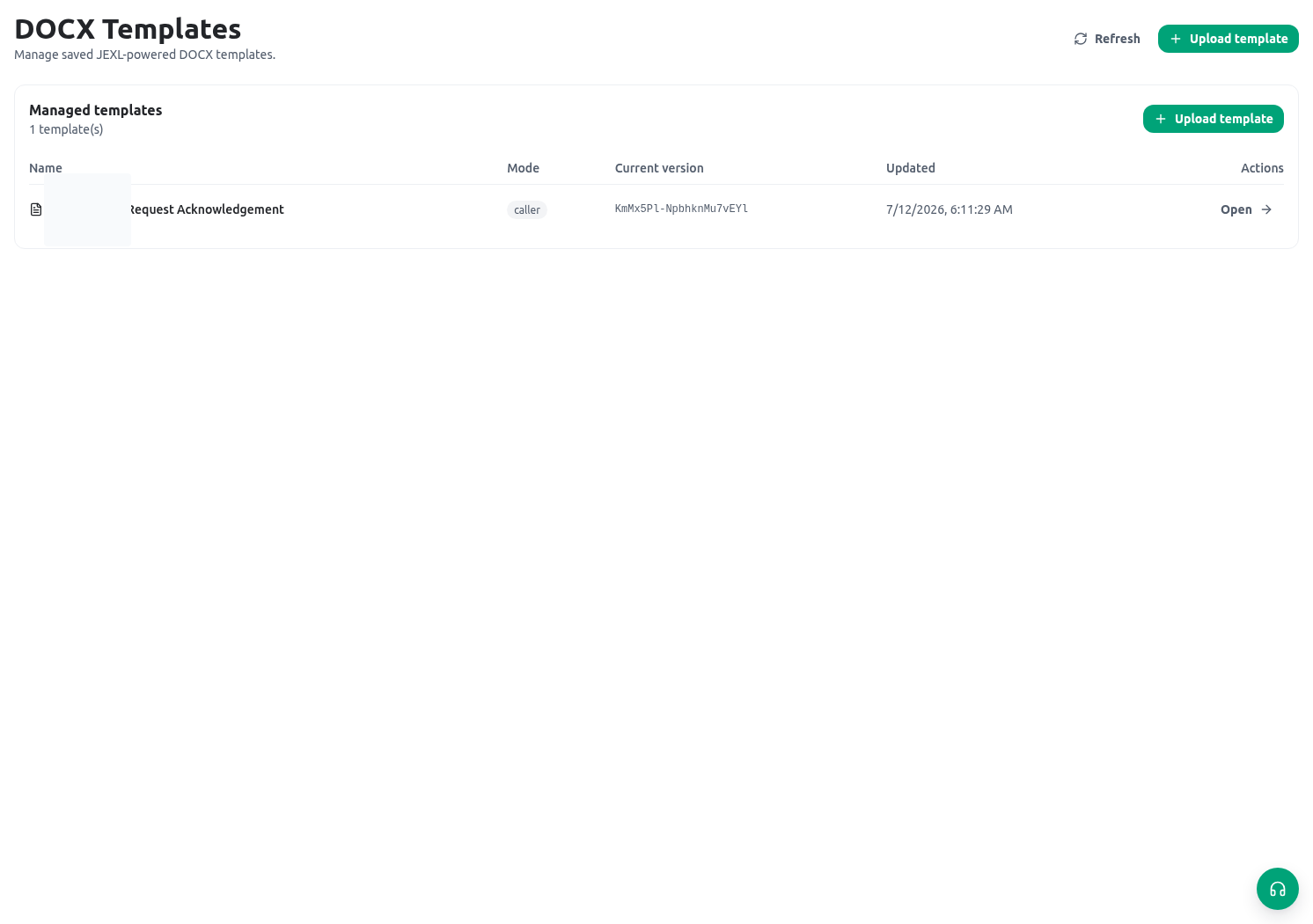

KayanOS document-template management for a public-service acknowledgement.

Set the filename and output policy

The filename expression is a JEXL expression. It uses the same record context as rendering, then KayanOS sanitizes unsafe filename characters, trims the result to a safe length, and forces the selected output extension. If the expression is blank or fails, the uploaded filename is the fallback. Do not place a file extension policy in staff memory: configure the requested output as DOCX or PDF and let the service enforce .docx or .pdf. For a request acknowledgement, a readable filename can use the stored serial:

'request-acknowledgement-' + $record.request_reference

An entity action can set its own filename expression and output policy. Its allowed formats default to DOCX; PDF is available only when that action permits it and the PDF conversion service is configured. A request for an output format outside the action’s allowed formats is rejected. Test both formats when PDF is enabled, because PDF conversion is an additional step after DOCX rendering.

Bind an action to a record type

An entity action configuration binds an entity key and action field to a managed template. It can enable or disable the action, choose caller or admin execution, constrain allowed output formats, define a default output format, choose a filename expression, and list allowed entities for elevated lookups. Entity actions deliberately use the template’s current managed version; do not assume that an action remains pinned to an earlier draft after a new version is made current. The two execution modes are materially different:

Mode	What it means	Safe default
`caller`	Data lookups run as the member who requested the document. Their record scope and normal access still apply.	Use for documents that staff should only generate from records they can already read.
`admin`	The render can run lookups as the system administrator. The person configuring or requesting this mode must have the required template-administration permission.	Use only for a documented service purpose with a small, reviewed data scope.

If an admin-mode action has an allowed-entity list, a getRecords lookup outside that list is rejected. Populate that list deliberately and keep each lookup narrowly filtered; elevated mode is not a reason to make a broad directory or case-history export available in a document.

Know the render context

The test renderer can accept JSON or load a saved entity record. A loaded entity-record context supplies $record, $inverseRelations, $organization, $member, and $now. In the entity-action context, $record is flattened so its stored field keys are available directly, $organization.id and $member.id identify the current organization and member, and $relations is currently an empty object. Inverse relations are supplied as configured record collections, so test their keys and timing on a real saved record. Start with a minimal JSON context while authoring:

{
  "$record": {
    "request_reference": "CSR-2026-00042",
    "resident_name": "Rana Haddad",
    "service_name": "Residence confirmation"
  },
  "$organization": { "id": "org-example" },
  "$member": { "id": "member-example" }
}

The context is data, not an authorization bypass. A value that the caller cannot safely disclose should not appear in the output merely because it is convenient to include in a Word document.

Create and revise with the AI helper

The DOCX AI helper is a temporary, review-before-save path. For a new template choose Create with AI helper; for an existing template open Versions → Revise with AI helper to start from the current managed version. A replacement file selected in Versions is not silently used as the AI source—use Validate and upload for that separate direct-upload path. Before generation, choose exactly one context source:

Entity context: select an entity and optionally an accessible representative record. Without a record, KayanOS generates a clearly labelled deterministic sample from the authorized field catalogue; sample values are not written into tags or metadata.
Manual JSON: provide a valid object no larger than 256 KiB, 12 nesting levels, 1,000 items per array, or 32 KiB per string. Known credential material is rejected; still treat every supplied key/value as sensitive.

The first request requires explicit acknowledgement that normalized document text, the authorized context catalogue/sample, and the instruction go to the organization’s configured AI provider. The raw DOCX archive and raw XML are not sent. Cancel and use normal upload when that disclosure is not appropriate. The default policy preserves source wording, order, formatting, and layout. Rewording, moving, deleting, duplicating, or creating document structure requires an explicit, bounded instruction; a whole-document rewrite must be requested explicitly. Generated revisions can use only renderer-supported tags and authorized context paths, and they remain subject to the placement, lookup, protocol, and size rules in Document-template tags and rendering. Every successful generation creates a numbered temporary revision. Review its change summary, tags, and rendered output; iterate, return to an earlier revision, reset to the source, or download DOCX for Word review. A failed generation/repair/render does not replace the latest valid revision. Resolve every reviewable or ambiguous mapping issue before approval. Approve and save requires human review, a valid revision, no blocking mapping issues, and a successful representative render. If PDF conversion is unavailable, download and inspect DOCX and explicitly acknowledge a DOCX-only review. Approval does not broaden permissions or alter action bindings/execution mode. Drafts expire after 24 hours without activity and no later than seven days after creation; discard or successful approval cleans temporary sensitive context while retaining a non-sensitive audit summary.

Worked example

A Syrian public-service office sends a request acknowledgement after staff register a resident’s service request. The entity citizen_service_requests contains request_reference, resident_name, service_name, received_at, and a controlled submission_status. The acknowledgement must show the stored reference, tell the resident what was received, and avoid claiming approval before a reviewer completes the process. Configure a template named Service request acknowledgement with caller execution. Bind it to the request entity’s “Generate acknowledgement” action, allow DOCX and PDF only if the office has tested both outputs, and use the filename expression shown above. In Word, place the reference and resident name in normal paragraphs, and keep a visible human-readable fallback sentence where an optional value may be empty. Use the wording “received for review” rather than “approved.” The core text can use simple inline expressions:

Reference: {{ $record.request_reference }}
Resident: {{ $record.resident_name }}
Service: {{ $record.service_name }}

Before making the action available, load a saved request with a real reference, render DOCX, inspect the generated file, then render the allowed PDF output if enabled. Check the filename, the data values, Arabic or English text direction where relevant, blank optional fields, and the wording that appears when the request is not yet accepted. Record the approved template version and the person who approved the content. If the office later changes the legal wording, upload a new version, run validation, test the same record plus a boundary case, obtain the required content approval, and only then make the new current version available. Record the approved source file, release date, and approval outside the current Builder screen; the screen does not provide a browsable older-version workflow. Because entity actions follow the current version, communicate the release time to the service owner rather than assuming a draft is isolated from live actions.

Testing

Test the document as a complete lifecycle, not only as a tag expression. Use a non-production record that resembles the intended service record without exposing real personal data.

Test	Setup	Expected result
Upload validation	Upload a DOCX with balanced tags and then one with a deliberately malformed tag	The valid version receives a clean validation summary; a recognized malformed tag reports an issue. Do not infer that a clean summary proves standalone Word control-tag placement.
Structural control	Render a record using an `if`, `each`, `else`, or include in its intended paragraph/table-row placement	The selected block, loop, or included body behaves correctly in the generated file. A misplaced inline control can pass upload validation, so this render test is mandatory.
Current version	Upload a reviewed revision and reopen the template	The current-version indicator changes. Retain the approved source and release record because the current Builder UI does not list earlier versions for review.
Record context	Load a saved entity record in the test renderer	`$record` values appear under their stored keys and no assumed direct relation data is invented.
Caller access	Render as a member with limited case scope	Lookups and record access follow that member’s permissions.
Admin action	Use a reviewed admin-mode action with a small allowed-entity list	Only the approved service purpose runs; an unlisted lookup target is rejected.
Output and filename	Render the permitted DOCX and, if configured, PDF	The extension matches the selected output and unsafe filename characters are not passed through.
Visual review	Open the actual generated file in the office’s supported Word/PDF viewer	Layout, tables, page breaks, language direction, and wording are acceptable.

Test a filename rule with a known record before adding optional components:

'service-request-' + $record.request_reference + '-' + dateFormat($now, 'YYYY-MM-DD')

If the expression fails, KayanOS falls back to the uploaded filename and still forces the output extension. Treat that as a test failure to investigate, not an acceptable production naming convention.

Troubleshooting

Symptom	Check first	Safe response
Upload reports validation issues	Is the DOCX package unsafe, or is a recognized tag empty, malformed, unbalanced, raw XML, `@html`, or `@chart`?	Fix the DOCX source, upload a new version, and validate again. Then render every structural control; upload validation alone does not prove its Word placement.
A field renders blank	Does the saved record contain the exact stored key and does the chosen context expose it?	Start with a one-field expression and inspect the loaded test context.
The wrong document wording appears	Which template version is current, and which approved source/release record was used?	Stop the action if necessary, compare the current source download with the retained approved file, and release a tested correction.
PDF fails while DOCX succeeds	Is PDF allowed for the action and is the conversion service available?	Verify the output policy and conversion configuration before promising PDF delivery.
A filename is unexpected	Does the JEXL expression return a usable string?	Test with a simple stored key, then add formatting one part at a time.
An admin-mode lookup is rejected	Is its entity key included in the action’s allowed-entity list?	Narrow and approve the list; do not remove controls merely to make a render succeed.

Permissions and data-quality limits

Template administration is a Builder-level, administrator-controlled capability: creating templates, uploading versions, validating, downloading current source files, configuring actions, and using managed test rendering require the appropriate builder access and assigned administrative verbs. Treat the template file, its tag expressions, and its filename expression as controlled configuration. Review changes with the owner of the service and the owner of the document wording. caller mode is the normal least-privilege choice. admin mode can intentionally read more broadly during rendering, so protect it with an explicit business reason, an allowed-entity list, narrow lookup filters, tested output, and a periodic access review. Do not put access tokens, passwords, unreviewed personal data, or secret internal notes into a template, filename, QR value, or image URL. Each managed run records whether it completed or failed, the template and version used, the actor, execution mode, requested and actual output format, lookup row counts, duration, output size, and an error stage/message when it fails. Use that run history to investigate an incident, but keep the authoritative service decision and retention policy in their governed records.

Write safe inline tags, loops, embeds, and includes in Document-template tags and rendering.
Choose stable record fields and layouts in Entity fields and layouts.
Learn the complete expression syntax and helper behavior in Expression language syntax.
Configure traceable references for documents in Serial IDs.
